16mm Dia. 220mm OAL 2 Flute Contour Mill

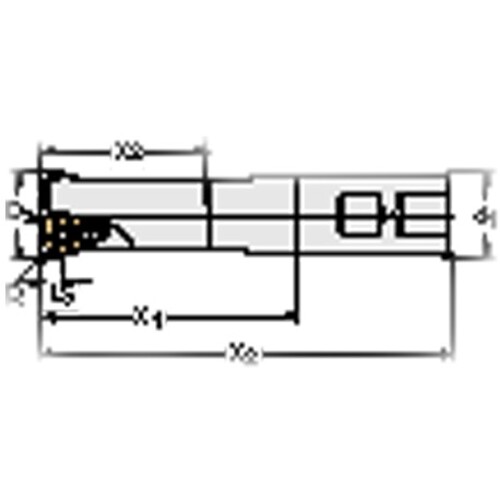

Indexable End Mill; 16 mm Dia. × 8 mm Max Depth × 32 mm Shank Dia. × 220 mm OAL ; Weldon Shank Series/List # F2231
| Cutting Diameter (DC/DCX) | 16 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 16 mm | Head Length (LH) | 159 mm |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 8 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 220 mm | Series/List # | F2231 |
| Shank Type | Weldon |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
2.405
