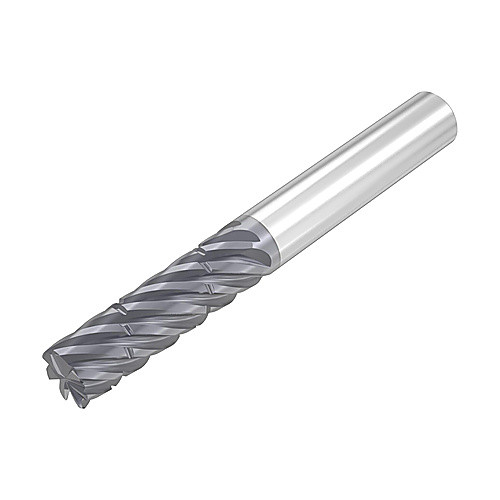

SCS738R.375D4R015.0Z7, ALTIN CARB 3/8x3/8x1-1/2x3-1/2
SQ End Mill; 9.525 mm Dia. × 38.1 mm LOC × 9.525 mm Shank Dia. × 88.9 mm OAL ; 7 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 9.525 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 9.525 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 38.1 mm | Corner Radius (RE) | 0.381 mm |
| Overall Length (OAL) | 88.9 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 7 | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.181
