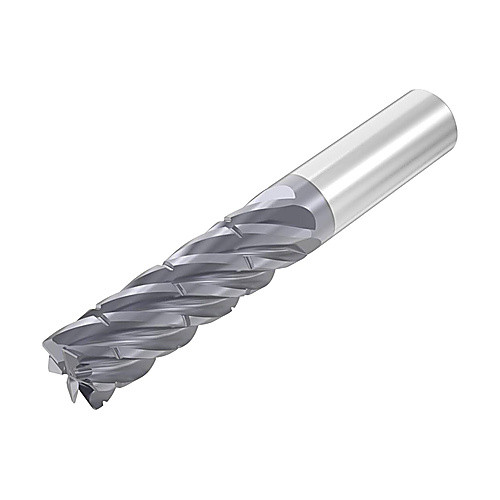

SCS638R-0.750-D3-R120.0-Z
SQ End Mill; 19.05 mm Dia. × 63.5 mm LOC × 19.05 mm Shank Dia. × 127 mm OAL ; 3.048 mm RE ; 6 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 19.05 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 19.05 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 63.5 mm | Corner Radius (RE) | 3.048 mm |
| Overall Length (OAL) | 127 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.16
