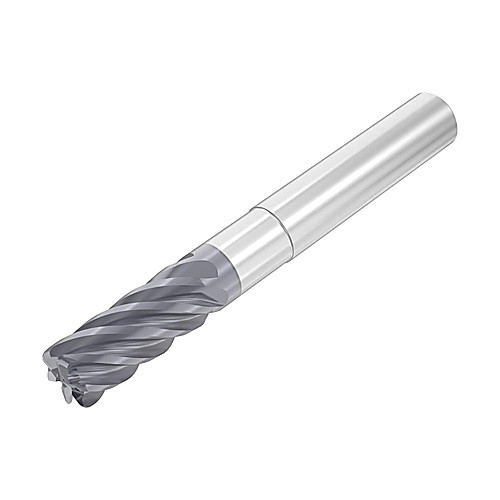

SN638R.750E2R030.0Z6, ALTIN CARB 3/4x3/4x1-3/4x6
SQ End Mill; 19.05 mm Dia. × 44.45 mm LOC × 19.05 mm Shank Dia. × 152.4 mm OAL ; 0.762 mm RE ; 0.03″ RE ; 6 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 19.05 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 19.05 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 44.45 mm | Corner Radius (RE) | 0.762 mm |
| Overall Length (OAL) | 152.4 mm | Neck Length (LN) | 76.2 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut|Single-End |
| Coating | AlTiN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.16
