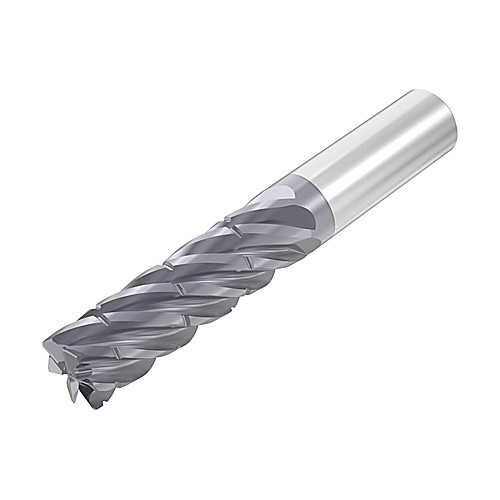

SCS638R1.000D3R250.0Z6, ALTIN CARB 1x1x3-1/8x6
SQ End Mill; 25.4 mm Dia. × 79.375 mm LOC × 25.4 mm Shank Dia. × 152.4 mm OAL ; 6 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 25.4 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 79.375 mm | Corner Radius (RE) | 6.35 mm |
| Overall Length (OAL) | 152.4 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Decimal Equivalent | 1″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Corner Radius (RE) / Chamfer Width (CHW) | 1/4″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.13
