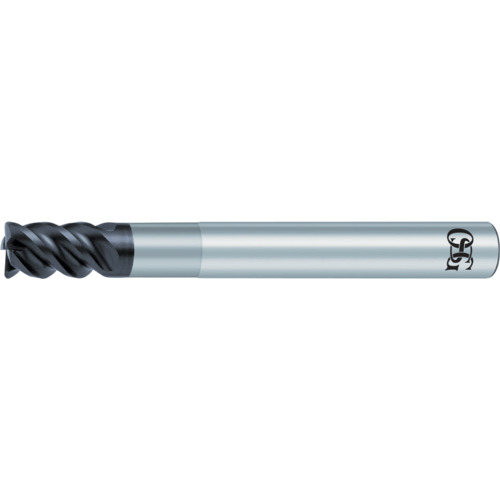

3XR0.2X70 4FL EXOCARB
SQ End Mill; 3 mm Dia. × 5 mm LOC × 6 mm Shank Dia. × 70 mm OAL ; 0.2 mm RE ; 4 FL ; 15 mm LBS ; Carbide ; AlTiCrSiN ; Series 4571
| Cutting Diameter (DC) | 3 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 15 mm |
| Depth of Cut Maximum (APMX) | 5 mm | Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 70 mm | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | AlTiCrSiN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | 4571 |
| Shank Type | Round |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.80000
Package Width
.45000
Package Weight
0.055
