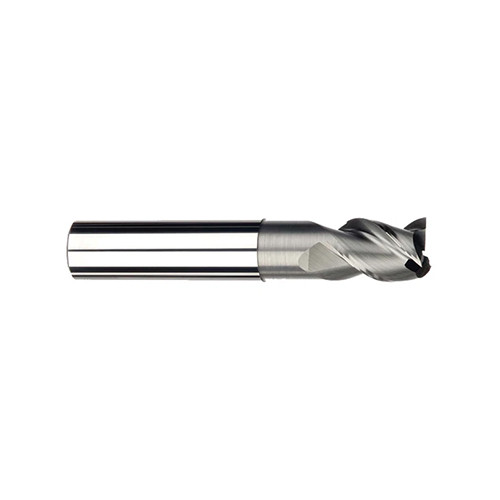

5/8″ × 5/8″ × 3/4″ × 6″ MG M203N 3F SX Streaker Mill
SQ End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 6″ OAL ; 3 FL ; Carbide ; Uncoated ; Series M203N-SQ
| Cutting Diameter (DC) | 5/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 3-3/8″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Grade | IM100 |
| Overall Length (OAL) | 6″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | M203N-SQ |
| Shank Type | Round |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.900
