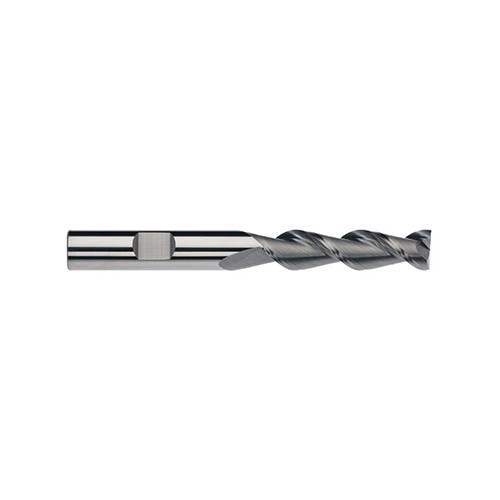

3/4″ × 3/4″ × 2-1/2″ × 5″ MG M202 2F .030R LLW Streaker Mill
SQ End Mill; 3/4″ Dia. × 2-1/2″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 2 FL ; Carbide ; Uncoated ; Series M202-CR
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Grade | IM100 |
| Overall Length (OAL) | 5″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Shank Type | Weldon | Series/List # | M202-CR |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.898
