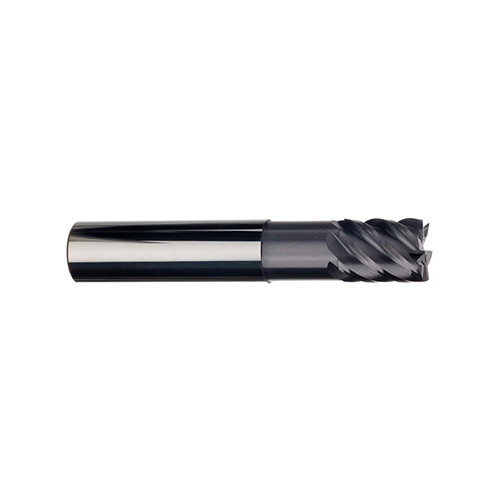

3/8″ × 3/8″ × 1/2″ × 2-1/2″ TiAlNX M706N 6F .030R SRW Omega-6 Mill
SQ End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 6 FL ; Carbide ; TiAlN ; Series M706N-CR
| Cutting Diameter (DC) | 3/8″ | Usable Length (LU) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | Hard Materials |
| Depth of Cut Maximum (APMX) | 1/2″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 2-1/2″ | Grade | IM106 |
| Cutting Edge Material | Carbide | Length Group | Neck Relief |
| Coating | TiAlN X | Body Material | Carbide |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.375″ |
| Shank Type | Weldon | Measurement Type | Inch |
| End Shape | Corner Radius | Series/List # | M706N-CR |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.140
