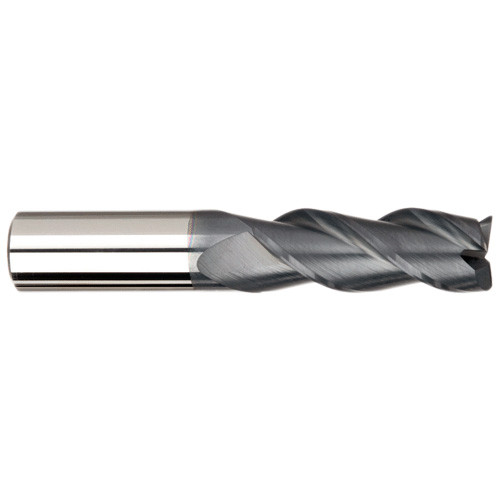

1/8″ × 1/8″ × 1/2″ × 1-1/2″ AlTiN M503 3F .015R RR enDURO Mill
SQ End Mill; 1/8″ Dia. × 1/2″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0.015″ RE ; 3 FL ; Carbide ; AlTiN ; Series M503-CR
| Cutting Diameter (DC) | 1/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Grade | IM106 AlTiN |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Single End |
| Cutting Edge Material | Carbide | Length Group | Standard |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | M503-CR |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.017
