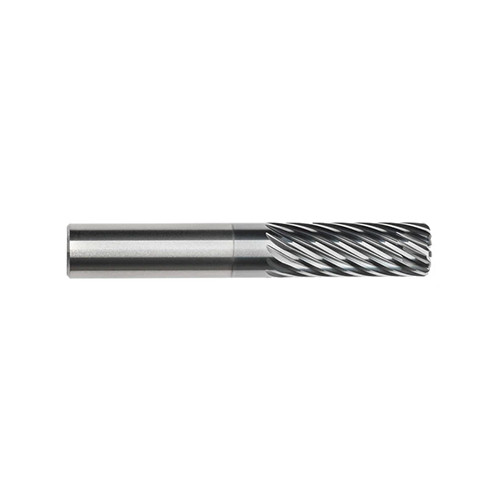

3/4″ × 3/4″ × 1-7/8″ × 4-1/2 AlCrNX IPT13 13F .125R 2.5xD Pow-R-Path Mill
SQ End Mill; 3/4″ Dia. × 1-7/8″ LOC × 3/4″ Shank Dia. × 4-1/2″ OAL ; 13 FL ; Carbide ; AlCrN ; Series IPT13-CR
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 1-7/8″ | Grade | IM206 |
| Overall Length (OAL) | 4-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlCrNX | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | IPT13-CR |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
1.010
