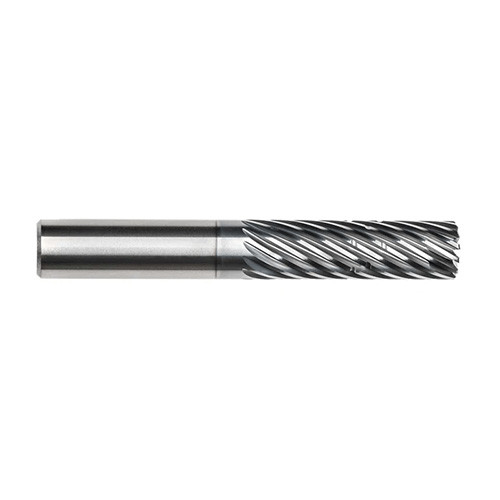

1″ × 1″ × 2-1/2″ × 5-1/2″ AlCrNX IPC13 13F .125R 2.5xD Pow-R-Path Mill
SQ End Mill; 1″ Dia. × 2-1/2″ LOC × 1″ Shank Dia. × 5-1/2″ OAL ; 13 FL ; Carbide ; AlCrN ; Series IPC13-CR
| Cutting Diameter (DC) | 1″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Grade | IM206 |
| Overall Length (OAL) | 5-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 1″ |
| Coating | AlCrNX | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | IPC13-CR |
| Shank Type | Round |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
2.160
