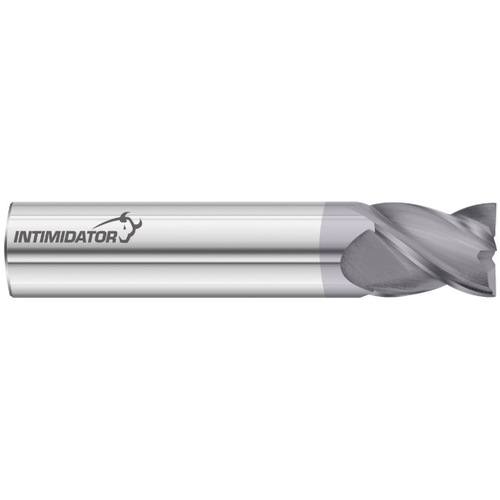

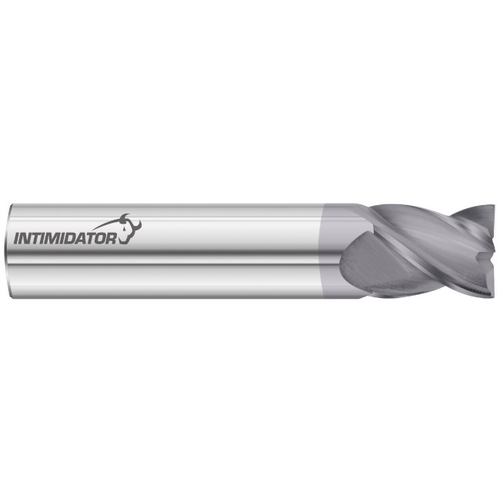

Square End Mill; 16 mm Dia. × 25 mm LOC × 16 mm Shank Dia. × 89 mm OAL ; 4 FL ; Carbide ; FC18 ; Series 3000

‹ ›

Square End Mill; 16 mm Dia. × 25 mm LOC × 16 mm Shank Dia. × 89 mm OAL ; 4 FL ; Carbide ; FC18 ; Series 3000

Square End Mill; 16 mm Dia. × 25 mm LOC × 16 mm Shank Dia. × 89 mm OAL ; 4 FL ; Carbide ; Series 3000

Item # FT8593907

Brand: Fullerton Tool

MFG #: 93907

Legacy Part #: FT8593907

TradeName: 3000 Intimidator End Mill

Quantity Available

Cutting Diameter (DC)

16 mm

Shank Type

Weldon

Connection Diameter Machine Side (DCONMS)

16 mm

End Shape

Square

Depth of Cut Maximum (APMX)

25 mm

Usable Length (LU)

25 mm

Overall Length (OAL)

89 mm

Tool Type

Center Cut|Single-End

Cutting Edge Material

Carbide

Length Group

Short|Stub

Coating

FC18

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.6299″

Flute Helix Angle (FHA)

38 Degrees

Series/List #

3000

Product Features

Remarks

‎

Square, Chamfer and Radius End Options

Chatter-Free Machining

4 Flutes

Unequally Spaced Index

Specially Designed Relief

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items furnished with Weldon Flats

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.445
