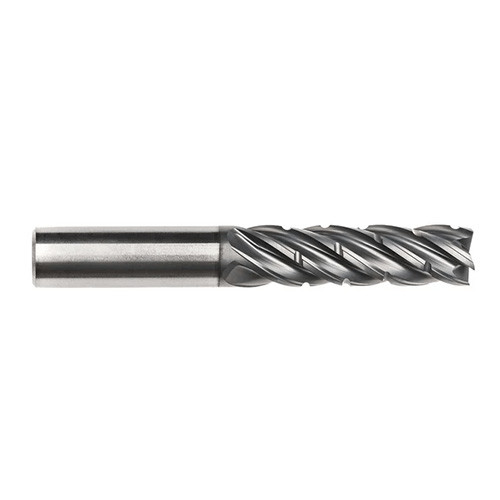

1/2″ × 1/2″ × 1-1/2″ × 3-1/2″ taC APC5 5F SQ 3xD Pow-R-Path Mill
SQ End Mill; 1/2″ Dia. × 1-1/2″ LOC × 1/2″ Shank Dia. × 3-1/2″ OAL ; 5 FL ; Carbide ; Ta-C ; Series APC5-SQ
| Cutting Diameter (DC) | 1/2″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Grade | IM250 |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3-1/2″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Style | 3xD |
| Coating | Ta-C | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | APC5-SQ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.3
