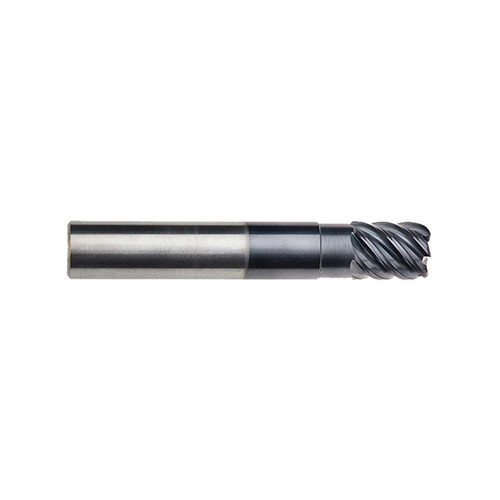

3/16″ × 3/16″ × 5/16″ × 2″ LBS=9/16 AlTiNX M725N 5F .015R SR Omega-6 Mill
SQ End Mill; 0.188″ Dia. × 5/16″ LOC × 0.188″ Shank Dia. × 2″ OAL ; 0.015″ RE ; 5 FL ; 9/16″ LBS ; Carbide ; AlTiNX ; Series M725N-CR
| Cutting Diameter (DC) | 0.188″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 0.188″ | Usable Length (LU) | 9/16″ |
| Depth of Cut Maximum (APMX) | 5/16″ | Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 2″ | Grade | IM206 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiNX | Decimal Equivalent | 0.188″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | M725N-CR |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
