1/2 7FL .015R LL ALCRNX

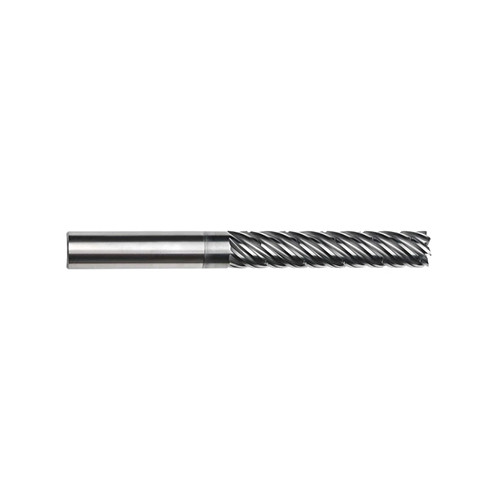

SQ End Mill; 1/2″ Dia. × 2-1/8″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 0.015″ RE ; 7 FL ; Carbide ; AlCrNX ; Series M527C-CR
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 2-1/8″ | Grade | IM206 AlCrNX |
| Overall Length (OAL) | 4″ | Tool Type | Single End |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlCrNX | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 7 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | M527C-CR |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.3
