QR0143029N5R02

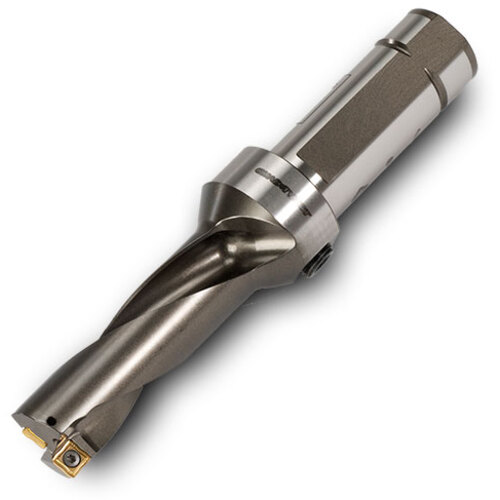

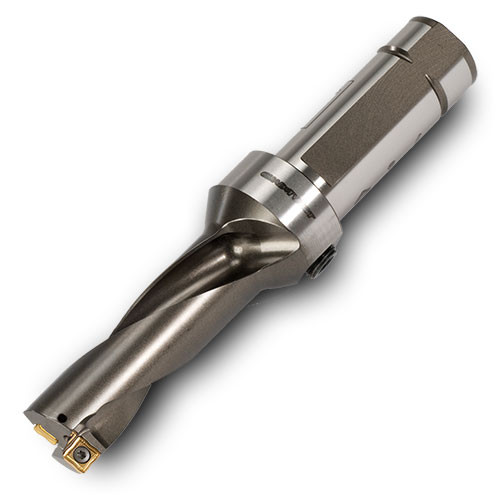

Indexable Insert Drill; 0.563″ Dia. × 1.13″ LU × 1″ Shank Dia. × 5.28″ OAL ; Steel

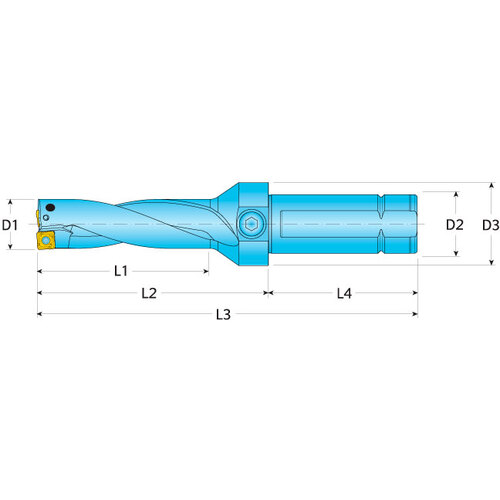

| Cutting Diameter (DC) | 0.563″ | Cutting Diameter Maximum (DCX) | 0.593″ |
| Usable Length (LU) | 1.13″ | Flange Diameter (DF) | 1.26″ |
| Application | | Drill Mill | Drilling | | Point Length (PL) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Shank Length (LS) | 3.16″ | Effective No. of Teeth | 1 |
| Functional Length (LF) | 2.13″ | Body Material | Steel |
| Overall Length (OAL) | 5.28″ | Decimal Equivalent | 0.563″ |
| Cutting Item Count (CICT) | 2 |
Product Features
| Family Description | Extended Length Shank For Maximum Clamping Surface Ideal For Lathe Applications Note: Brass coolant fitting should be ordered separately | Country of Origin | S.Korea |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.859
