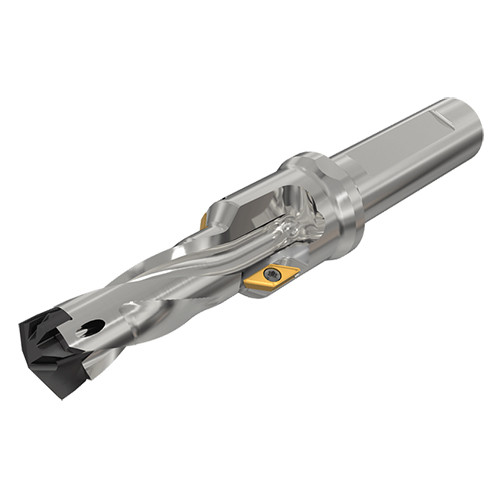

DCNT 210-048-25A-M24
Drill; 21 mm to 21.9 mm Dia. × 25 mm Shank Dia. × 136 mm OAL × 57.2 mm LU × 56 mm Shank Length
| Cutting Diameter (DC) | 0.827″ | Shank Length (LS) | 2.205″ |
| Cutting Diameter 2 (DC_2) | 1.102″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.252″ | Measurement Type | Inch |
| Application | | Chamfering | Drilling | | Master Insert Identification (MIID) | ICP 210 |
| Tool Type | Chamfering drills | Point Length (PL) | 0.12598″ |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Body Material | Steel |
| Insert Seat Size Code (SSC) | 21.0 | Flange Diameter (DF) | 1.26″ |
| Cutting Diameter Minimum (DCN) | 0.827″ | Decimal Equivalent | 0.827″ |
| Cutting Diameter Maximum (DCX) | 0.862″ | Step Diameter Length (SDL) | 1.8898″ |
| Overall Length (OAL) | 5.354″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Exchangeable head drills with chamfering inserts mainly for pre-thread holes | Country of Origin | Israel |
| Remarks | Hole tolerance: D+.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.937
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body
