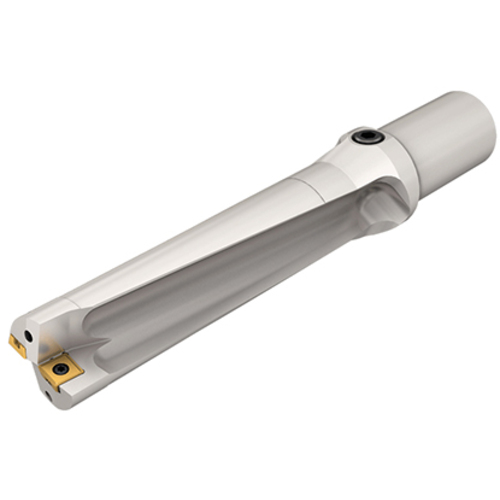

DR160-064-20-05-4D-T
Indexable Insert Drill; 16 mm Dia. × 64 mm LU × 20 mm Shank Dia. × 132 mm OAL ; 4xD ; Steel
| Cutting Diameter (DC) | 0.63″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.5197″ | Cutting Diameter Maximum (DCX) | 0.705″ |
| Application | | Drilling | | Flange Diameter (DF) | 1.091″ |
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 05 |
| Protruding Length (LPR) | 3.23″ | Body Material | Steel |
| Shank Length (LS) | 1.97″ | Decimal Equivalent | 0.63″ |
| Functional Length (LF) | 3.209″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 5.197″ |
Product Features
| Family Description | Indexable insert drills for non-rotating applications with coolant holes and one flat shank, drilling depth 4xD | Country of Origin | Israel |
Shipping Info
Package Weight
0.485
