3/32XR0.010X2.25 4FL

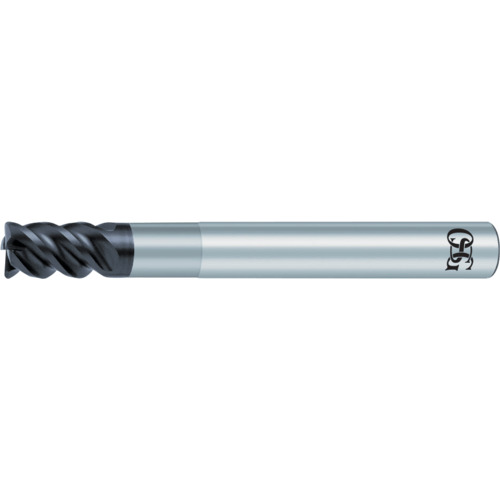

SQ End Mill; 3/32″ Dia. × 3/32″ LOC × 3/32″ Shank Dia. × 2-1/4″ OAL ; 0.01″ RE ; 0.01″ RE ; 4 FL ; 3/32″ LBS ; Carbide ; AlTiCrSiN ; Series 4471
| Cutting Diameter (DC) | 3/32″ | Usable Length (LU) | 3/32″ |
| Connection Diameter Machine Side (DCONMS) | 3/32″ | Corner Radius (RE) | 0.01″ |
| Depth of Cut Maximum (APMX) | 3/32″ | Neck Diameter (DN) | 0.058″ |
| Overall Length (OAL) | 2-1/4″ | Neck Length (LN) | 1/4″ |
| Cutting Edge Material | Carbide | Tool Type | High Performance |
| Coating | AlTiCrSiN | Style | Corner Radius |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.0938″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 4471 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
Product Features
| Remarks | •High performance micrograin carbide •WXS coating •Corner radius •For high feed milling •Recommended for carbon steels, alloy steels, tool steels, hardened steels up to 65 HrC and cast iron. | Country of Origin | Japan |
Shipping Info
Package Length
2.50000
Package Width
.55000
Package Weight
0.025
