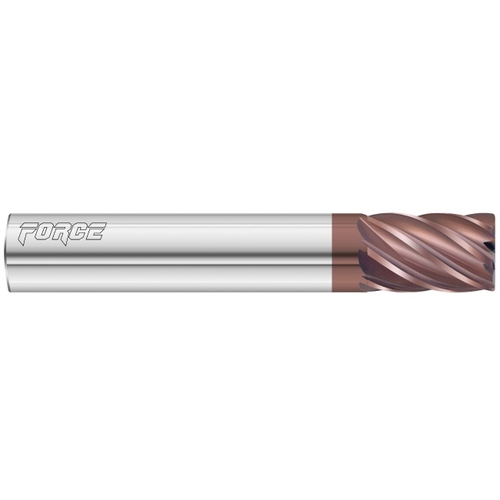

Corner Radius End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 2-1/2″ OAL ; 7 FL ; Carbide ; FC20 ; Series 3600
Corner Radius End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 2-1/2″ OAL ; 7 FL ; Carbide ; Series 3600
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | FC20 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 7 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | Variable | Series/List # | 3600 |
| Shank Type | Round |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Package Weight
0.25
