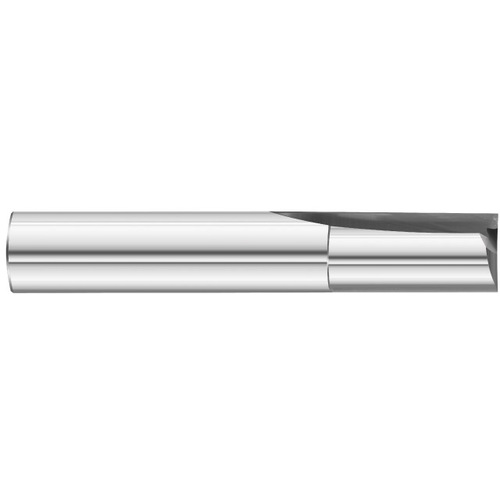

Square End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 3242

‹ ›

Square End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 3242

SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 3242

Item # FT8512148

Brand: Fullerton Tool

MFG #: 12148

Legacy Part #: FT8512148

TradeName: 3242 Straight Flute End Mill

Quantity Available

Cutting Diameter (DC)

1/2″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

1/2″

End Shape

Square

Depth of Cut Maximum (APMX)

1″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

3″

Length Group

Regular

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

Uncoated

Decimal Equivalent

0.5″

Flute Count (NOF)

Series/List #

3242

Flute Helix Angle (FHA)

0 Degrees

Product Features

Remarks

‎

Square End

2 Flutes

Straight Flutes

Single End

Right Hand Cut

Center Cutting

Dura Carb (Micrograin)

Standard Uncoated

Inch Based Tools

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Country of Origin

USA

Shipping Info

Package Weight

0.275
