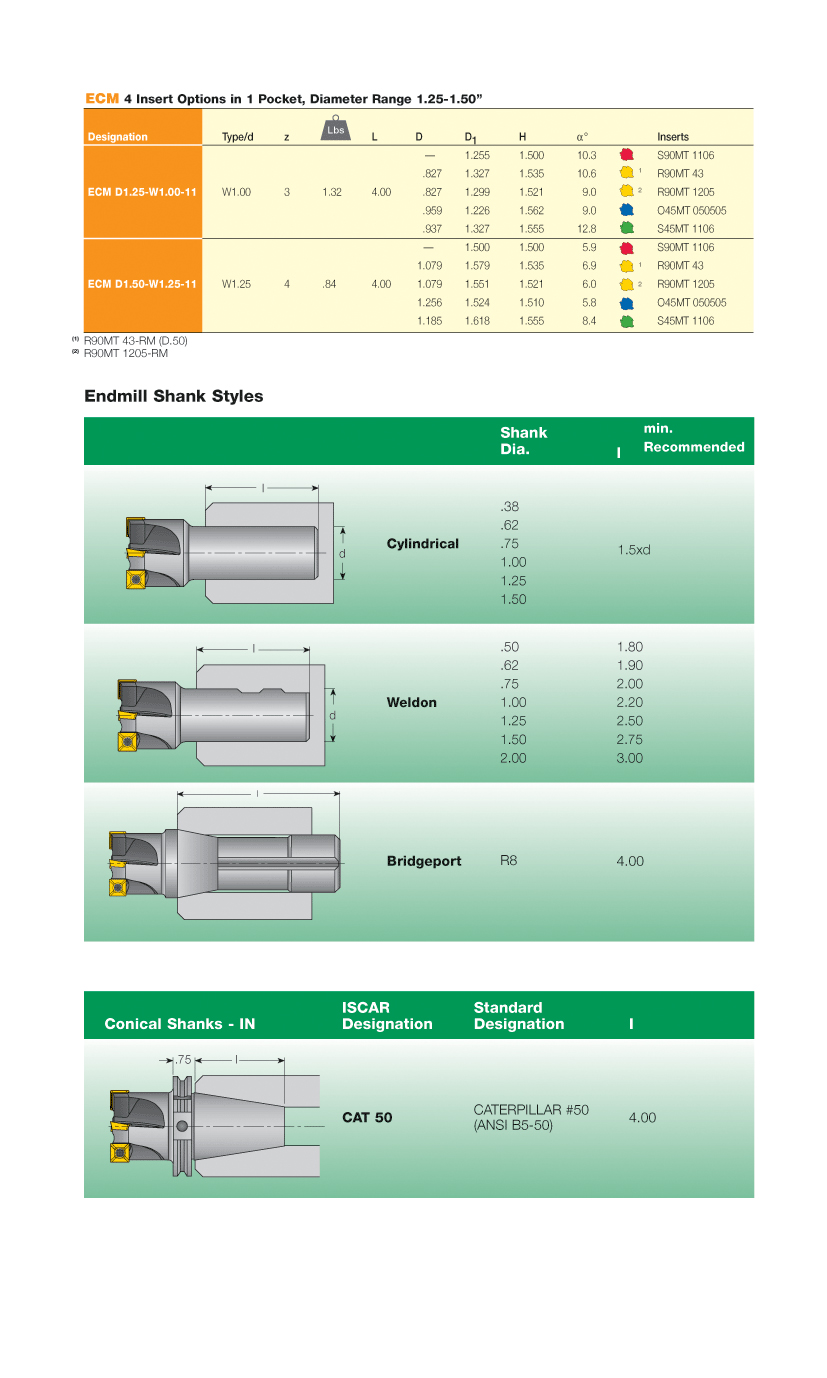

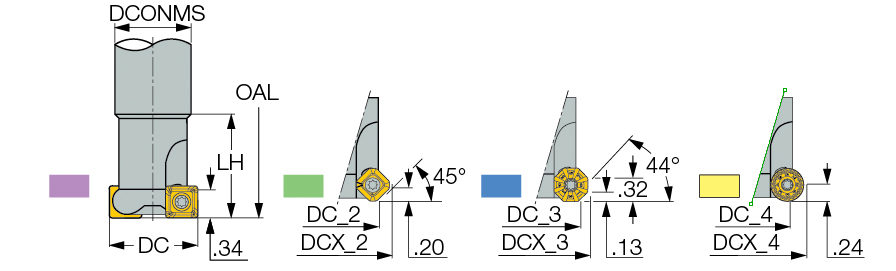

ECM D1.50-W1.25-11
| Cutting Item Count (CICT) | 4 | Head Length (LH) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 0.34″ | Tool Type | Chamfering endmills |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 5.9 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Profiling | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | S90MT | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.25 Lbs |
Product Features
| Family Description | CHAMMILL endmills for four insert shapes. Part of the CHAMELEON multi-functional line. | Country of Origin | Israel |
| Remarks | The displayed data refers to S90MT inserts. For other combinations see More Info. For adaptation click on More Info. |
Shipping Info
Package Weight
1.565
