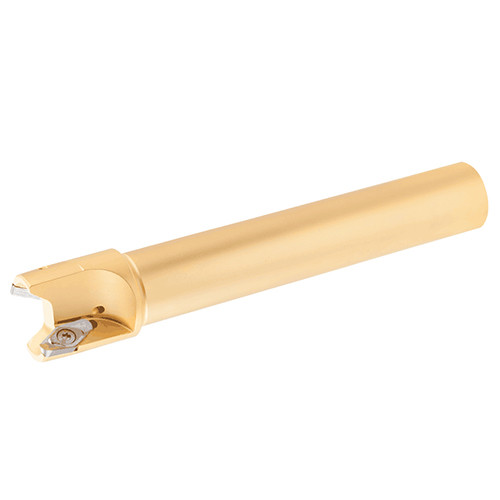

HSM90S EAL-D150-2-C125-14
Indexable End Mill; 1-1/2″ Dia. × 0.531″ LOC × 1-1/4″ Shank Dia. × 9″ OAL ; 2 FL ; Round Shank ; 90 Degrees

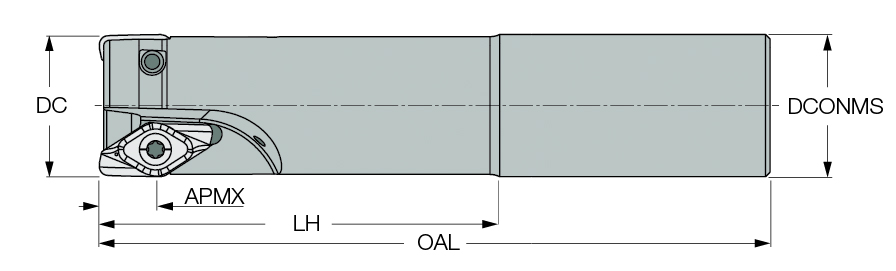

| Cutting Diameter (DC/DCX) | 1-1/2″ | Weight of Item (WT) | 2.77 Lbs |
| Cutting Diameter (DC) | 1-1/2″ | Head Length (LH) | 1.77″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° Indexable for Aluminum |
| Depth of Cut Maximum (APMX) | 0.531″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 9″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 10 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | HSM90S APCR 140508R-P | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Long reach 90° endmills carrying HSM90S APCR 1405... inserts for machining aluminum at high rotation speeds | Country of Origin | Israel |

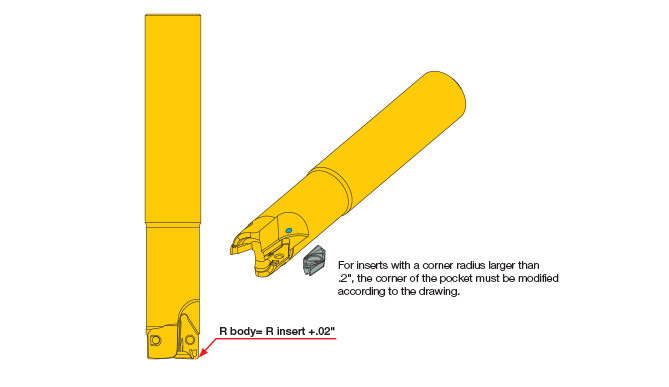

| Remarks | When machining at very high cutting speeds (RPM>15000) and replacing the insert, it is also recommended to replace the screw For inserts with a corner radius larger than .2, tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + .02 For adaptation, click on More Info |
Shipping Info
Package Weight
3.086
