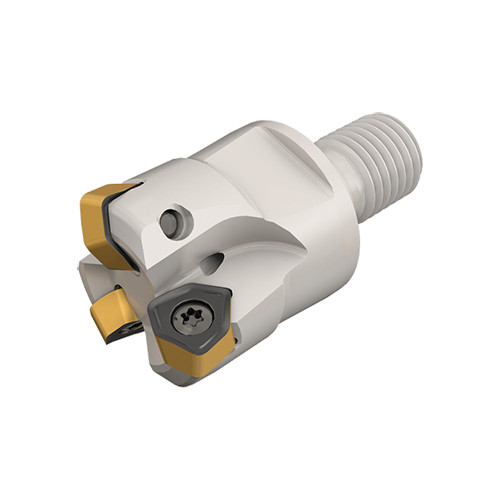

FF EWX D40-5-M16-05
Indexable End Mill; 1.181″ Dia. × 0.039″ LOC × 2.559″ OAL ; 5 FL ; 17 Degrees

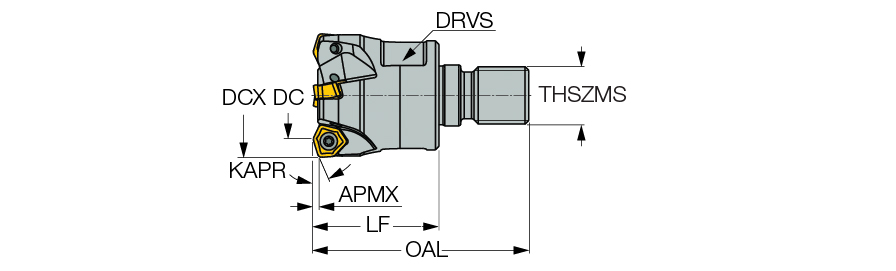

| Cutting Diameter (DC/DCX) | 1.181″ | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Diameter (DC) | 1.181″ | Drive Size (DRVS) | 0.984″ |
| Cutting Item Count (CICT) | 5 | Flute Count (NOF) | 5 |
| Depth of Cut Maximum (APMX) | 0.039″ | Torque (TQ) | 17.7 lbfxin |
| Overall Length (OAL) | 2.559″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 2.8 Degrees | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | H600 WXCU 05T312T | Measurement Type | Inch |
| Weight of Item (WT) | 0.57 Lbs | Body Material | Steel |
| Functional Length (LF) | 1.575″ | Connection Code Machine Side (CCMS) | FLEXFIT |
| Tool Type | Fast Feed Endmill | Cutting Diameter Maximum (DCX) | 1.575″ |
Product Features
| Family Description | HELIDO UPFEED endmills with FLEXFIT threaded adaptation, forfast feed, carrying double-sided Inserts with 6 cutting edges. | Country of Origin | Israel |

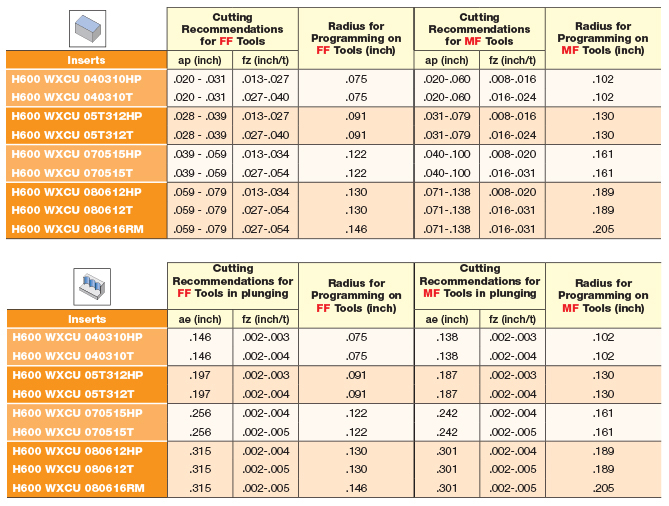

| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info For machining recommendations and radius for programming, click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC For user guide, click on More Info |
Shipping Info
Package Weight
0.756
Related Documentation
When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
