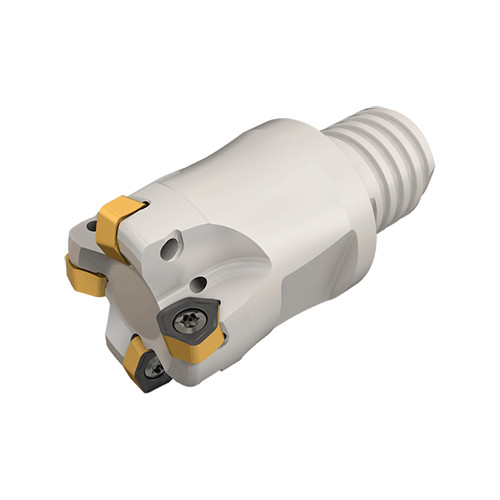

FF EWX D16-2-MMT10-04
Indexable End Mill; 0.339″ Dia. × 0.031″ LOC × 0.598″ Shank Dia. × 1.213″ OAL ; 2 FL ; 17 Degrees

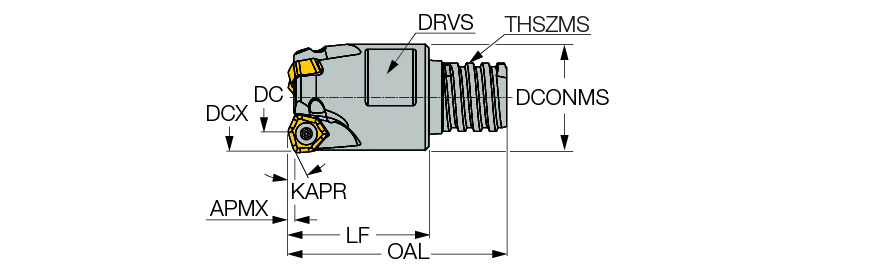

| Cutting Diameter (DC/DCX) | 0.339″ | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Cutting Diameter (DC) | 0.339″ | Drive Size (DRVS) | 0.472″ |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.031″ | Torque (TQ) | 8 lbfxin |
| Overall Length (OAL) | 1.213″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.598″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | H600 WXCU 040310HP | Body Material | Steel |
| Weight of Item (WT) | 0.05 Lbs | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 0.768″ | Cutting Diameter Maximum (DCX) | 0.63″ |
| Tool Type | Fast Feed Endmill |
Product Features
| Family Description | HELIDO UPFEED endmills with MULTI-MASTER threaded adaptation, for fast feed, that mount double-sided Inserts with 6 cutting edges. | Country of Origin | Israel |
| Remarks | For machining recommendations, radius for programming and adaptation click on More Info Do not apply lubricant to the MULTI-MASTER threaded connection To generate a straight surface without cusps, the width of cut must not exceed DC |
