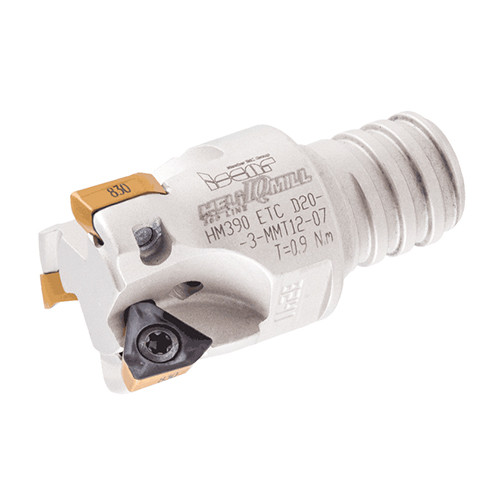

HM390 ETC D0.75-3MMT12-07
Indexable End Mill; 3/4″ Dia. × 0.2″ LOC × 0.72″ Shank Dia. × 1.27″ OAL ; 3 FL ; 90 Degrees

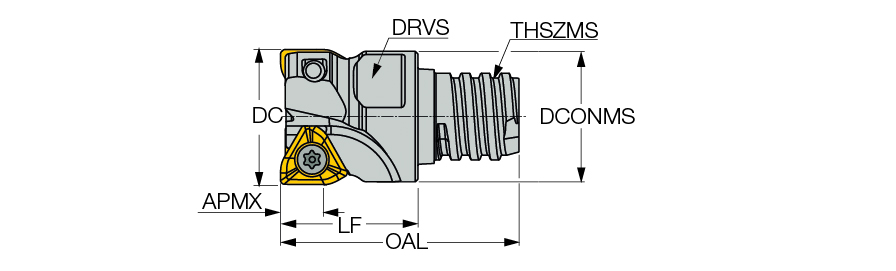

| Cutting Diameter (DC/DCX) | 3/4″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 3/4″ | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 0.63″ |
| Depth of Cut Maximum (APMX) | 0.2″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 1.27″ | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.72″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HM390 TCKT 0703PCTR | Body Material | Steel |
| Weight of Item (WT) | 0.08 Lbs | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 3/4″ |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded adaptation carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
| Remarks | Insert clamping screw must be lubricated every indexing. Tightening torque .66 lbfxft. For adaptation click on More Info |
Shipping Info
Package Weight
0.44
