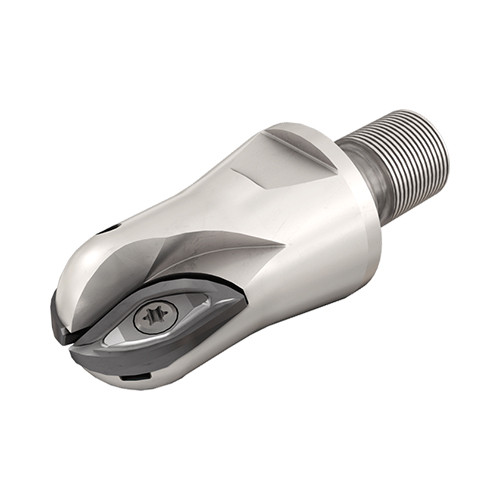

BCM D1.25-M16
Indexable End Mill; 1-1/4″ Dia. × 1.024″ LOC × 1.142″ Shank Dia. × 3.071″ OAL

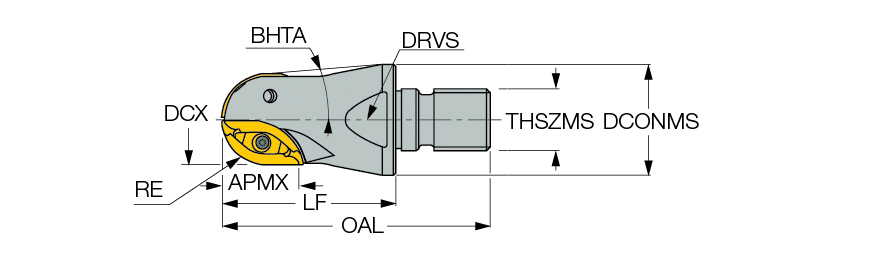

| Cutting Diameter (DC/DCX) | 1-1/4″ | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Diameter (DC) | 1-1/4″ | Drive Size (DRVS) | 0.937″ |
| Cutting Item Count (CICT) | 2 | Corner Radius (RE) | 5/8″ |
| Depth of Cut Maximum (APMX) | 1.024″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3.071″ | Front Type | A |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.142″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | BCR D1.25-QT | Body Material | Steel |
| Weight of Item (WT) | 0.47 Lbs | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 2.087″ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Tool Type | Ball nose endmills |
Product Features
| Family Description | DROPMILL, Ball nose endmills with FLEXFIT threaded adaptation carrying tangent straight edge inserts. Used for semi finishing and finishing at high feed rates. Its unique design provides a fully effective cutter - two cutting edges. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3 |
Shipping Info
Package Weight
0.661
