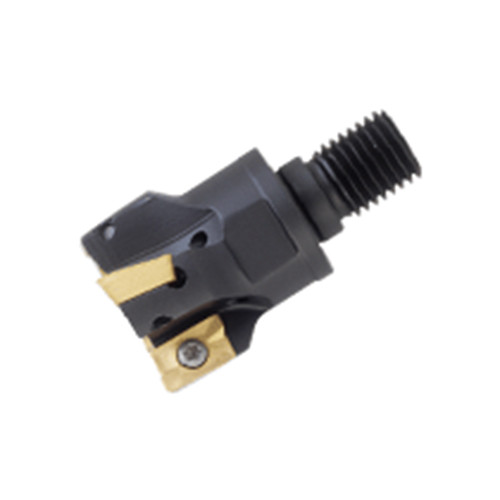

HM90 E90AD-D1.50-4-M16
Indexable End Mill; 1-1/2″ Dia. × 0.56″ LOC × 1.1″ Shank Dia. × 2.559″ OAL × 1.42″ LU ; 4 FL
| Cutting Diameter (DC/DCX) | 1-1/2″ | Functional Length (LF) | 1.58″ |
| Cutting Diameter (DC) | 1-1/2″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 4 | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Depth of Cut Maximum (APMX) | 0.56″ | Usable Length (LU) | 1.42″ |
| Overall Length (OAL) | 2.559″ | Flute Count (NOF) | 4 |
| Ramping Angle Maximum (RMPX) | 4 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Counter Boring | Fast Feed Milling | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.1″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | ADCR 1505PDFR | Body Material | Steel |
| Weight of Item (WT) | 0.44 Lbs | Connection Code Machine Side (CCMS) | FLEXFIT |
| Head Length (LH) | 1.42″ |
Product Features
| Family Description | 90° endmills with a FLEXFIT threaded adaptation carrying HM90 ADKT-1505... inserts. | Country of Origin | Israel |

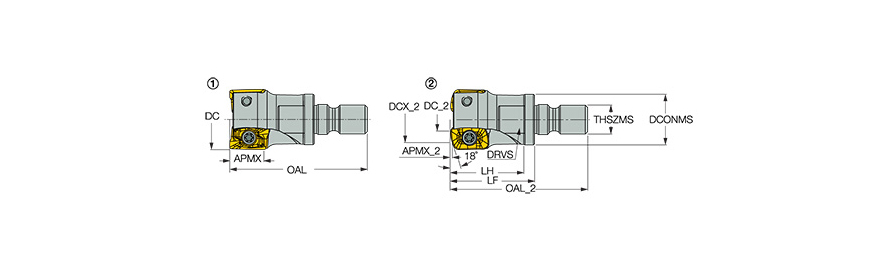

| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. 1- with standard square insert 2- with FF (fast feed) insert For adaptation, click on More Info |
