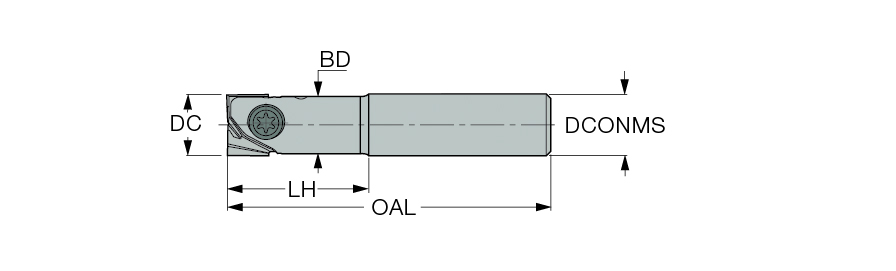

HCE D.50-D-L6.5-C.62
| Cutting Diameter (DC/DCX) | 1/2″ | Head Length (LH) | 2.4″ |
| Cutting Diameter (DC) | 1/2″ | Tool Type | 90° Indexable End Mill |
| Cutting Item Count (CICT) | 4 | Usable Length (LU) | 2.4″ |
| Depth of Cut Maximum (APMX) | 13 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 6-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Multifunction endmills that can carry ball nose, 90° and toroidal inserts. | Country of Origin | IL |
| Remarks | For undercutting, use HTR inserts only For adaptation, click on "More Info" The dimensions are for HCC inserts with r=.015″ |
Shipping Info
Package Weight
.6830
