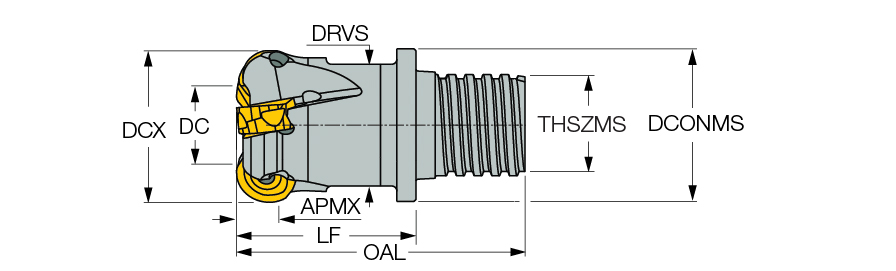

H400 ER D25-3-MMT15-10
| Cutting Diameter (DC/DCX) | 0.591″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 0.591″ | Tool Type | Round Corner Cutters |
| Cutting Item Count (CICT) | 3 | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Depth of Cut Maximum (APMX) | 0.3″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Endmills with MULTI-MASTER threaded connection, carrying double-sided inserts with four radii cutting edges (HELIDO ROUND H400 LINE). | Country of Origin | IL |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation, click on "More Info" |
Shipping Info
Package Weight
.2980
