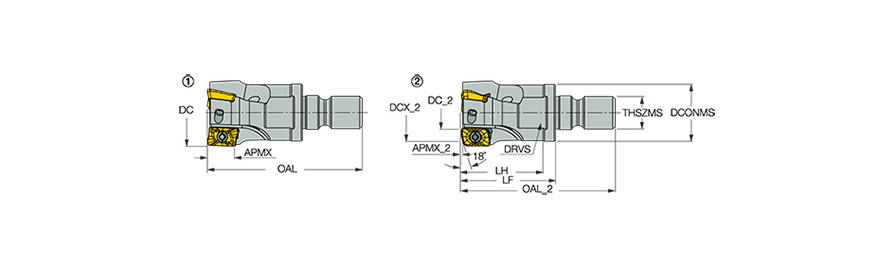

HM90 E90A-D.75-2-M12
| Cutting Diameter (DC/DCX) | 3/4″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 3/4″ | Tool Type | 90° Indexable End Mill |
| Cutting Item Count (CICT) | 2 | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Depth of Cut Maximum (APMX) | 0.39″ | Usable Length (LU) | 1.02″ |
| Overall Length (OAL) | 130 mm | Flute Count (NOF) | 4 |
| Shank Type | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Inch |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | HELI2000 90° endmills with a FLEXFIT threaded adaptation carrying HM90 AP.. 1003... inserts. | Country of Origin | IL |
| Remarks | For adaptation, click on "More Info". |
Shipping Info
Package Weight
.2430
