HCM D.50-B-L6.5-C.75

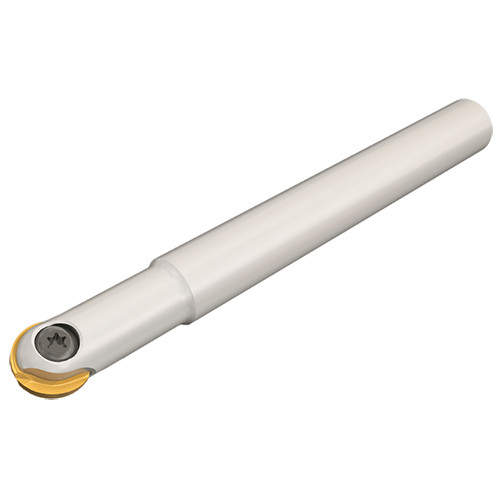

Indexable End Mill; 1/2″ Dia. × 1/3″ LOC × 3/4″ Shank Dia. × 6-1/2″ OAL × 2″ LU ; 2 FL ; Round Shank

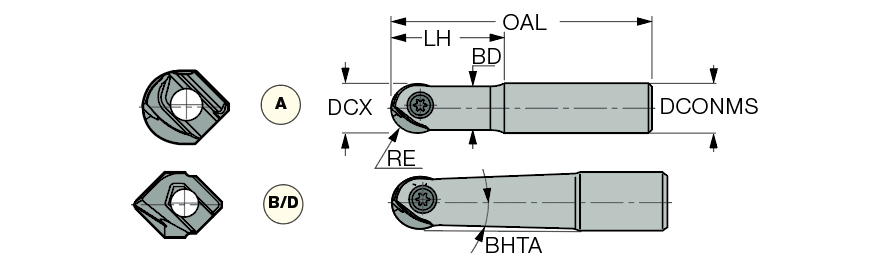

| Cutting Diameter (DC/DCX) | 1/2″ | Usable Length (LU) | 2″ |
| Cutting Diameter (DC) | 1/2″ | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 1 | Torque (TQ) | 53 lbfxin |
| Depth of Cut Maximum (APMX) | 1/3″ | Corner Radius (RE) | 1/4″ |
| Overall Length (OAL) | 6-1/2″ | Body Half Taper Angle (BHTA) | 5 Degrees |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| Application | | Countersinking | Drill Mill | Profiling | Slanted Shoulder & Chamfer | | Front Type | B |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | HBR D.50-QF | Measurement Type | Inch |
| Weight of Item (WT) | 0.69 Lbs | Body Material | Steel |
| Head Length (LH) | 2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Ball nose endmills | Cutting Diameter Maximum (DCX) | 1/2″ |
Product Features
| Family Description | Ball nose multifunction endmills D=.500″ (BALLPLUS). Each tool can carry various milling insert geometries. | Country of Origin | Israel |
| Remarks | The dimensions are for HBR inserts For adaptation click on More Info |
Shipping Info
Package Weight
0.87
