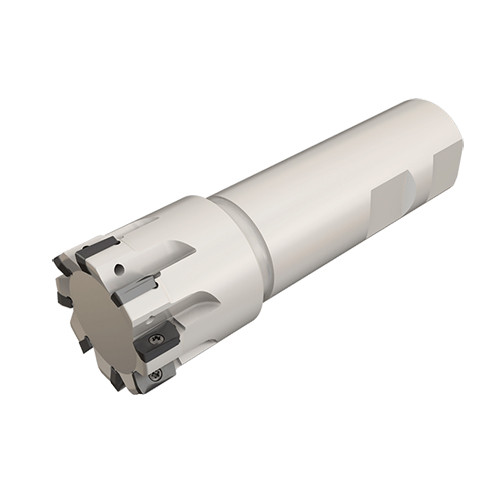

HP E90AN-D.75-5-C.75-7C
Indexable End Mill; 3/4″ Dia. × 0.303″ LOC × 3/4″ Shank Dia. × 4″ OAL × 0.93″ LU ; 5 FL ; Round Shank ; 90 Degrees

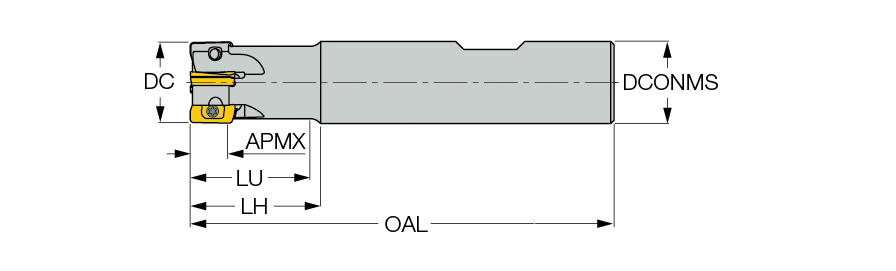

| Cutting Diameter (DC/DCX) | 3/4″ | Head Length (LH) | 1″ |
| Cutting Diameter (DC) | 3/4″ | Functional Length (LF) | 4″ |
| Cutting Item Count (CICT) | 5 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.303″ | Usable Length (LU) | 0.93″ |
| Overall Length (OAL) | 4″ | Flute Count (NOF) | 5 |
| Shank Type | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 2.4 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HP ANKT 0702PNTR | Body Material | Steel |
| Weight of Item (WT) | 0.42 Lbs | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Endmills using HELIPLUS HP ANKT 0702.. inserts. Extra fine pitch endmills with very tight tool and insert tolerances for high production rates. Very strong and durable insert. Available are tools with and without coolant holes. | Country of Origin | Israel |
| Remarks | Insert tightening torque: 5.5 lbfxin For adaptation click on More Info. |
