1/2X5/8X3 5FL 0.015 CR EM

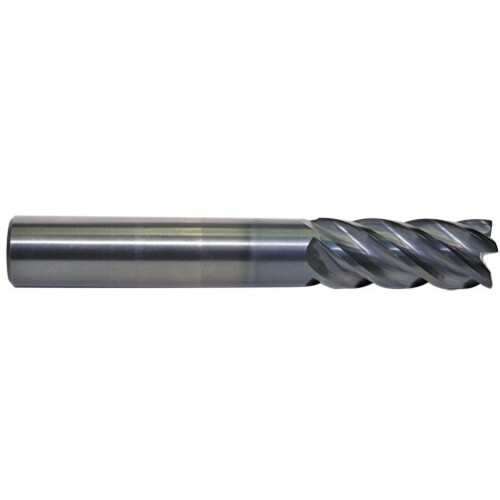

SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.015″ RE ; 5 FL ; 5/8″ LBS ; Carbide ; AlCrN ; Series 278
| Cutting Diameter (DC) | 1/2″ | Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Overall Length (OAL) | 3″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | AlCrN | Style | Roughing/Finishing |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 278 |
| End Shape | Corner Radius | Shank Size (SS) | 1/2″ |
Product Features
| Family Description | Alternate Manufacture # 37026 | Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.50000
Package Weight
0.3
