3/8X1/2X2-1/2 5FL 0.03

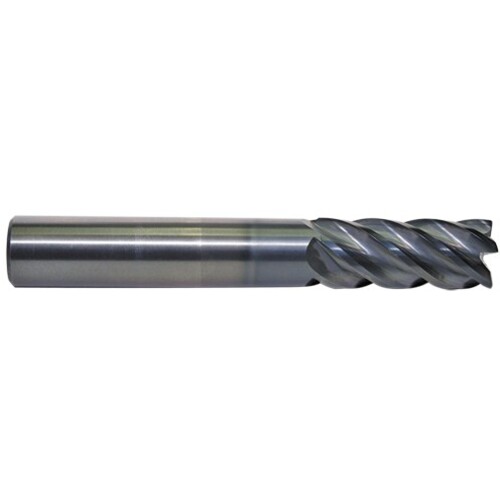

SQ End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 0.03″ RE ; 5 FL ; 1/2″ LBS ; Carbide ; AlCrN ; Series 278
| Cutting Diameter (DC) | 3/8″ | Usable Length (LU) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | AlCrN | Style | Roughing/Finishing |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 278 |
| End Shape | Corner Radius | Shank Size (SS) | 3/8″ |
Product Features
| Family Description | Alternate Manufacture # 37015 | Country of Origin | USA |
Shipping Info
Package Length
2.50000
Package Width
.50000
Package Weight
0.126
