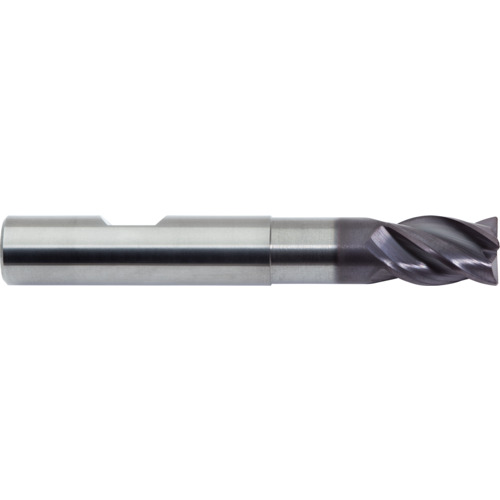

20mm TuffCut XR 4 FL Stub, sq end, Weldon Flat Alternate Manufacture # 18270
Square End Mill; 20 mm Dia. × 30 mm LOC × 20 mm Shank Dia. × 112 mm OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 20 mm | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 30 mm | End Shape | Square |
| Overall Length (OAL) | 112 mm | Usable Length (LU) | 30 mm |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | AlTiN | Decimal Equivalent | 0.7874″ |
Product Features
| Family Description | Alternate Manufacture # 18270 | Country of Origin | USA |
Shipping Info
Package Length
4.40000
Package Width
.78700
Package Height
.78700
Package Weight
.898
