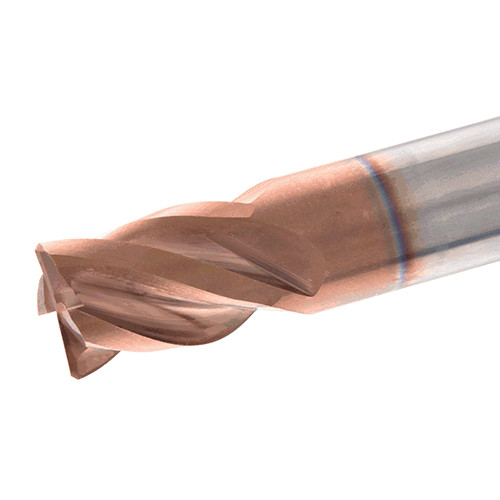

ECI-H4S 500-500C500CFE3 IC608
SQ End Mill; 1/2″ Dia. × 1/2″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; 1/2″ LBS ; Carbide ; AlTiCrSiN

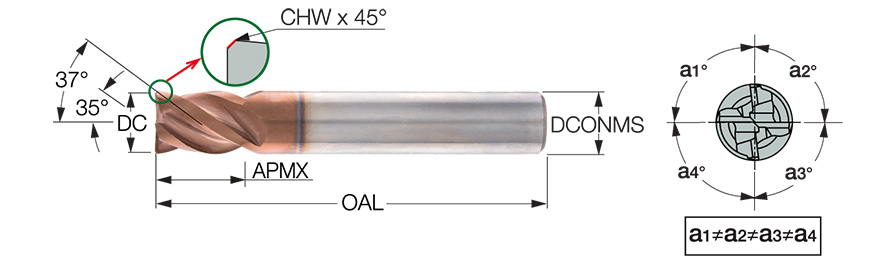

| Cutting Diameter (DC) | 1/2″ | Corner Chamfer Width (CHW) | 0.02″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1/2″ | Grade | IC608 |
| Overall Length (OAL) | 3″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Coating | AlTiCrSiN | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 36 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| End Shape | Chamfer | Measurement Type | Inch |
| Usable Length (LU) | 1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Short, 4 flute endmills with different helix (35° & 37°) and variable pitch for chatter damping. Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 1XD. | Country of Origin | Israel |
Shipping Info
Package Weight
0.289
