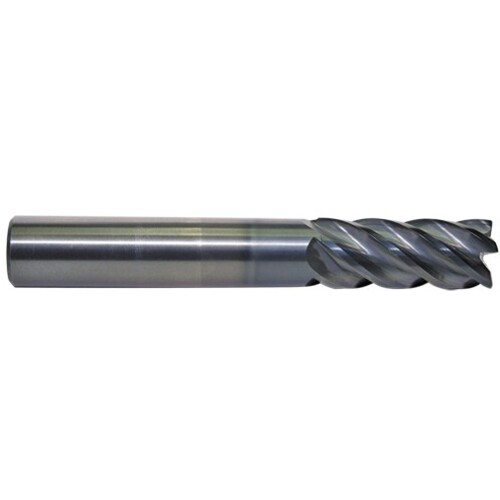

5/8x5/8x2-1/4x5 TuffCut XT 5 FL EM ALtima Blaze 0.015CR Alternate Manufacture # 37045
SQ End Mill; 5/8″ Dia. × 2-1/4″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 0.015″ RE ; 5 FL ; 2-1/4″ LBS ; Carbide ; AlCrN ; Series 278
| Cutting Diameter (DC) | 5/8″ | Usable Length (LU) | 2-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Overall Length (OAL) | 5″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | Long |
| Coating | AlCrN | Style | Roughing/Finishing |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.625″ |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 278 |
| End Shape | Corner Radius | Shank Size (SS) | 5/8″ |
Product Features
| Family Description | Alternate Manufacture # 37045 | Country of Origin | USA |
Shipping Info
Package Length
5.00000
Package Width
.63000
Package Weight
0.72
