1/2X1/2X1-1/4X3 7FL 16B

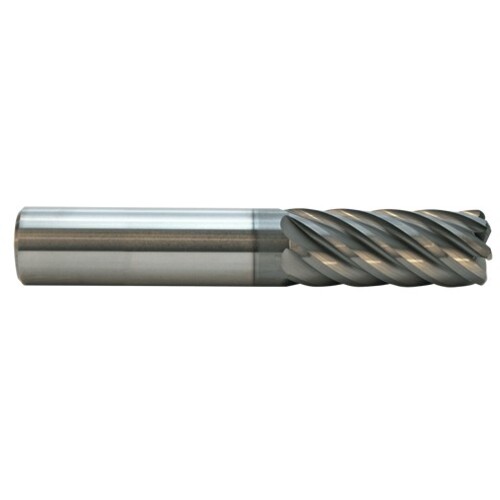

SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.06″ RE ; 7 FL ; 1-1/4″ LBS ; Carbide ; AlCrN
| Cutting Diameter (DC) | 1/2″ | Flute Count (NOF) | 7 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Usable Length (LU) | 1-1/4″ |
| Overall Length (OAL) | 3″ | Corner Radius (RE) | 0.06″ |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | AlCrN |
Product Features
| Family Description | Alternate Manufacture # 18520 | Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.50000
Package Weight
0.282
