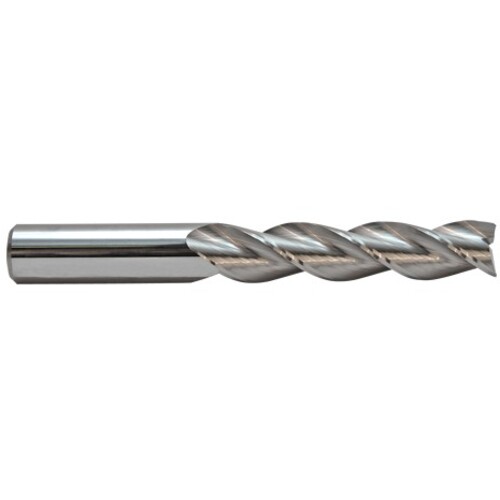

3.0mm TuffCut X-AL, 3 Fl, Center Cutting, Aluminum Finisher End Mill 0.5mmr Alternate Manufacture # 13100
SQ End Mill; 3 mm Dia. × 8 mm LOC × 6 mm Shank Dia. × 52 mm OAL ; 0.5 mm RE ; 3 FL ; Carbide
| Cutting Diameter (DC) | 3 mm | Usable Length (LU) | 8 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 8 mm | Application | Finishing |
| Overall Length (OAL) | 52 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.1181″ |
| End Shape | Corner Radius |
Product Features
| Family Description | Alternate Manufacture # 13100 | Country of Origin | USA |
Shipping Info
Package Length
2.00000
Package Width
.31000
Package Weight
0.041
