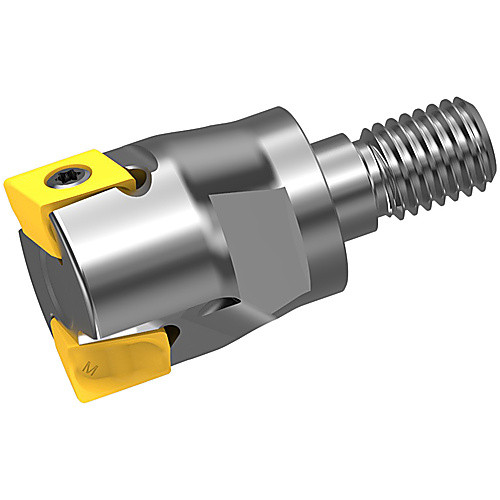

VPX300UR1802AM1235 EM
Indexable End Mill; 1-1/8″ Dia. × 0.433″ LOC × 0.492″ Shank Dia. × 2.244″ OAL ; 2 FL ; 90 Degrees ; Series VPX300_INCH
| Cutting Diameter (DC/DCX) | 1-1/8″ | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 1-1/8″ | Body Diameter (BD) | 0.925″ |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.433″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2.244″ | Series/List # | VPX300_INCH |
| Ramping Angle Maximum (RMPX) | 1.73 Degrees | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.492″ | Connection Retention Knob Thread Size (CRKS) | M12 |
| Functional Length (LF) | 1.378″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
