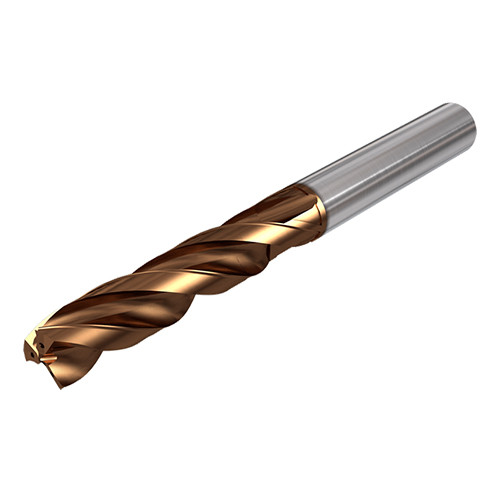

SCCD 075-043-080 ACF5 IC608
SC Drill; 0.295″ Dia. × 0.315″ Shank Dia. × 3.583″ OAL × 2.13″ LCF ; 5xD ; AlTiCrSiN
| Drill Bit Size / Cutting Diameter (DC) | 0.295″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.295″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.295″ | Grade | IC608 |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | AlTiCrSiN | Usable Length (LU) | 1.6929″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 2.13″ |
| Application | | Drilling | | Overall Length (OAL) | 3.583″ |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Point Length (PL) | 0.02598″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Number of Teeth | 3 | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 1.417″ |
Product Features
| Family Description | Three flute solid carbide flat head drills with coolant holes, drilling depth 5xD. | Country of Origin | S.Korea |
Shipping Info
Package Weight
47
