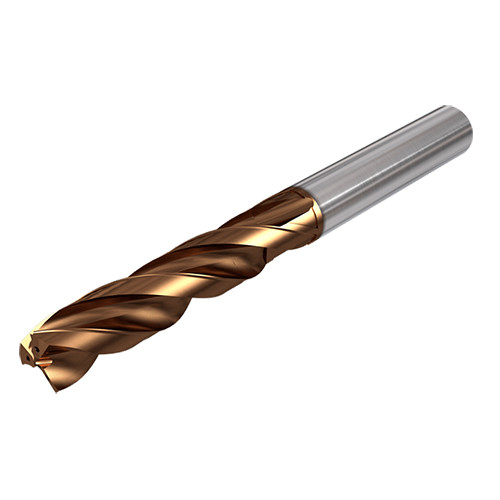

SCCD 040-017-060 ACF3 IC608
SC Drill; 0.157″ Dia. × 0.236″ Shank Dia. × 2.598″ OAL × 0.98″ LCF ; 3xD ; AlTiCrSiN
| Drill Bit Size / Cutting Diameter (DC) | 0.157″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.157″ | Grade | IC608 |
| Length Group | MEDIUM | Measurement Type | Inch |
| Coating | AlTiCrSiN | Usable Length (LU) | 0.6693″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 0.98″ |
| Application | | Drilling | | Overall Length (OAL) | 2.598″ |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.01692″ | Body Material | Carbide |
| Number of Teeth | 3 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.378″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round |
Product Features
| Family Description | Three flute solid carbide flat head drills with coolant holes, drilling depth 3xD | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.046
