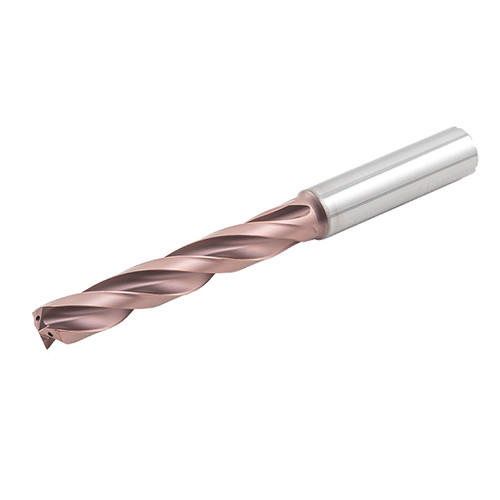

SCCD 100-049-100 ACP5 IC608

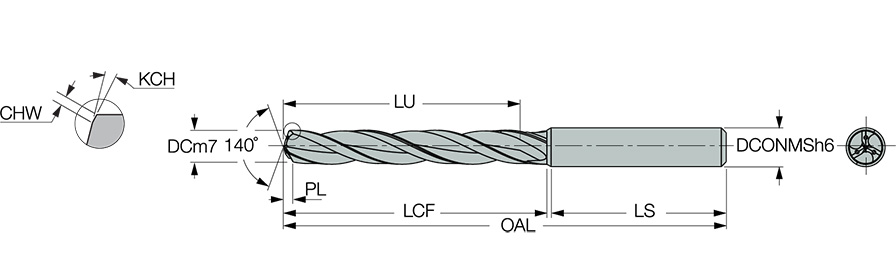

SC Drill; 0.394″ Dia. × 0.394″ Shank Dia. × 4.055″ OAL × 2.44″ LCF ; AlTiCrSiN
| Drill Bit Size / Cutting Diameter (DC) | 0.394″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.394″ | Grade | IC608 |
| Coating | AlTiCrSiN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 1.9291″ |
| Application | | Drilling | | Length Chip Flute (LCF) | 2.44″ |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Overall Length (OAL) | 4.055″ |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 3 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.07283″ | Body Material | Carbide |
| Number of Teeth | 3 | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.575″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round |
Product Features
| Family Description | Three flute solid carbide drills with coolant holes, drilling depth 5xD | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.190
