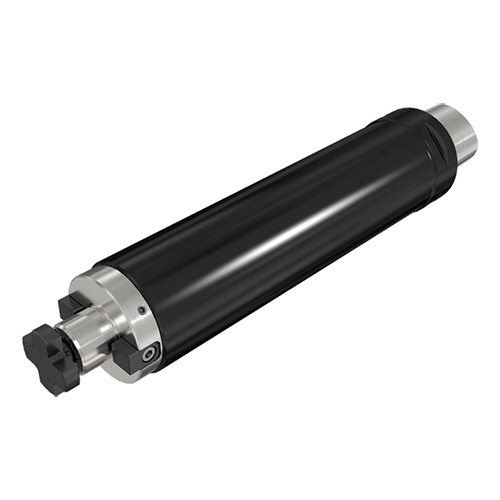

AV C6 SEM 1.0 2.4X9.86
Shell Mill Holder; 2.48″ Shank Dia. ; 1″ Hole Dia. ; 2.4″ Body Dia. ; 9.84″ Body Length ; 63 Shank Size

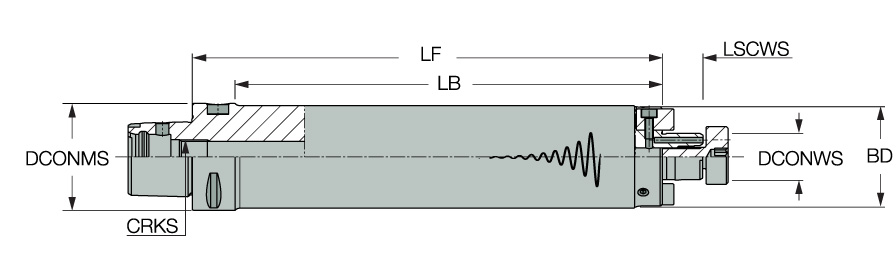

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 1″ | Clamping Length Workpiece Side (LSCWS) | 0.669″ |
| Shank Size (SS) | 63 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Functional Length (LF) | 9.84″ | Measurement Type | Inch |
| Body Length (LB) | 9.84″ | Body Material | Steel |
| Body Diameter (BD) | 2.4″ |
Product Features
| Family Description | Anti-vibration shell mill holders with coolant holes and CAMFIX (ISO 26623-1) exchangeable tapered shanks | Country of Origin | Germany |
Shipping Info
Package Weight
8388
