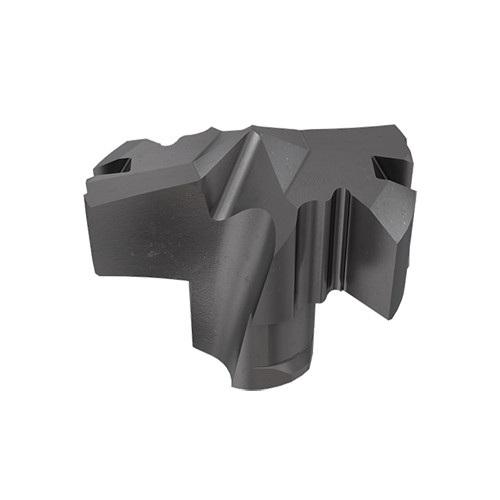

IHP 0701-BD IC954
Drill Head; 0.701″ Dia. ; 128 Degrees ; IC954 ; TiAlN

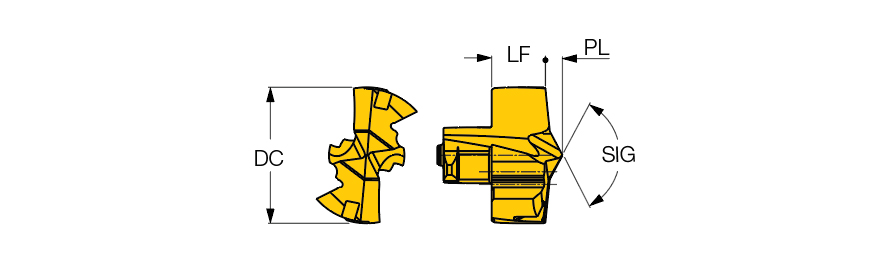

| Cutting Diameter (DC) | 0.701″ | Functional Length (LF) | 0.268″ |
| Applicable Material | | Steel | | Measurement Type | Inch |
| Application | | Drilling | | Point Length (PL) | 0.07874″ |
| Grade | IC954 | Point Angle (SIG) | 128 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlCrN |
| Insert Seat Size Code (SSC) | 17.0 | Body Material | Carbide |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills for machining construction beams and structural steel materials | Country of Origin | Israel |
| Remarks | Intermediate sizes can be supplied on request |
Shipping Info
Package Weight
0.042
