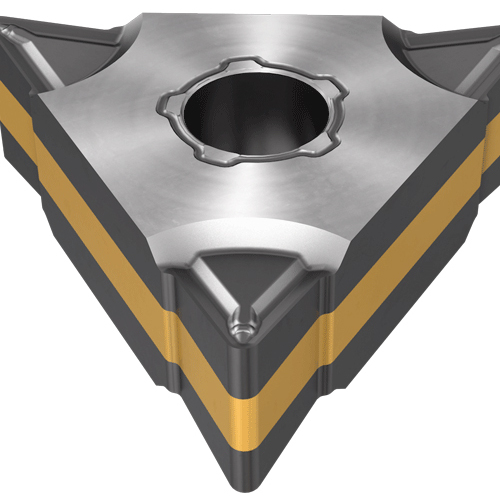

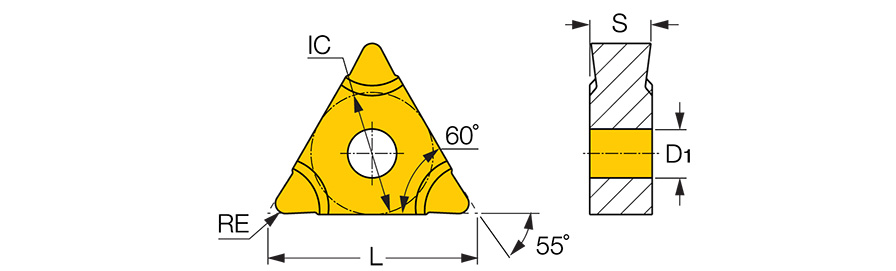

D6NMG 331-M3P IC830
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Fixing Hole Diameter (D1) | 0.15″ |
| Insert Style | D6NM | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.0157″ | Min D.O.C. | 0.02″ |
| Insert Size | G 33 | Depth of Cut Maximum (APMX) | 0.098″ |
| Cutting Edge Length (L) | 0.648″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN+TiN |
Product Features
| Family Description | Double-sided triangular inserts with 55° corner angle and a positive rake angle, for semi-finishing and finishing ISO-P | Country of Origin | Israel |
| Remarks | The LOGIQ-6-TURN inserts fit standard holders also suitable for TNMG inserts For dimensions and tolerances, see more info |
Shipping Info
Package Weight
0.018
