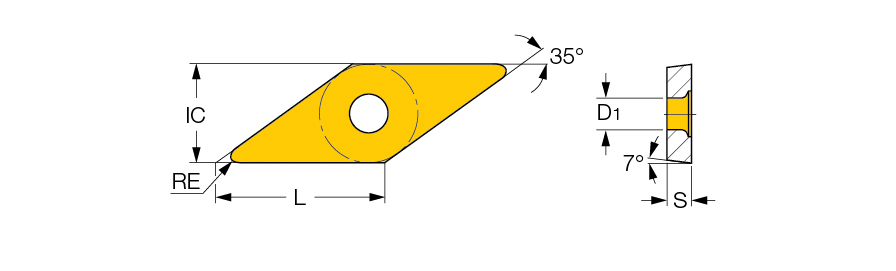

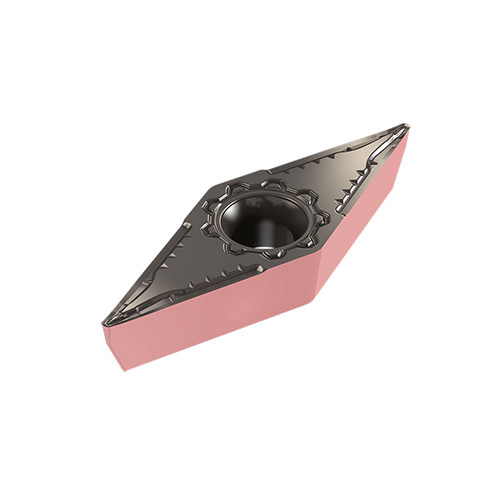

VCMT 331-F3M IC1017
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.177″ |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | Y Axis for Swiss Type Machines | | Tool Type | Turn Positive Inserts |
| Insert Style | VCMT | Min D.O.C. | 0.004″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.071″ |
| Insert Size | 331 | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 0.654″ | Max. Turning Feed (ft(max)) | 0.00787 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | F3M |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | IC1017 | Body Material | Carbide |
Product Features
| Family Description | 35° rhombic positive flank inserts, for stainless steel finishing applications. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.024
