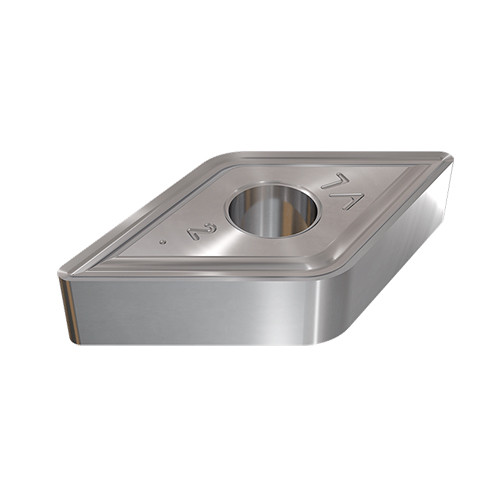

DNMG 331-VL IC1017
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 0.02″ |
| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 0.138″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Insert Size | 331 | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Cutting Edge Length (L) | 0.458″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | VL |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | IC1017 |
Product Features
| Family Description | The VL chipformer is used for high temperature alloys and stainless steel (originally designed for machining valves). Can be used for facing, longitudinal turning and profiling in roughing and finishing conditions. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
8
